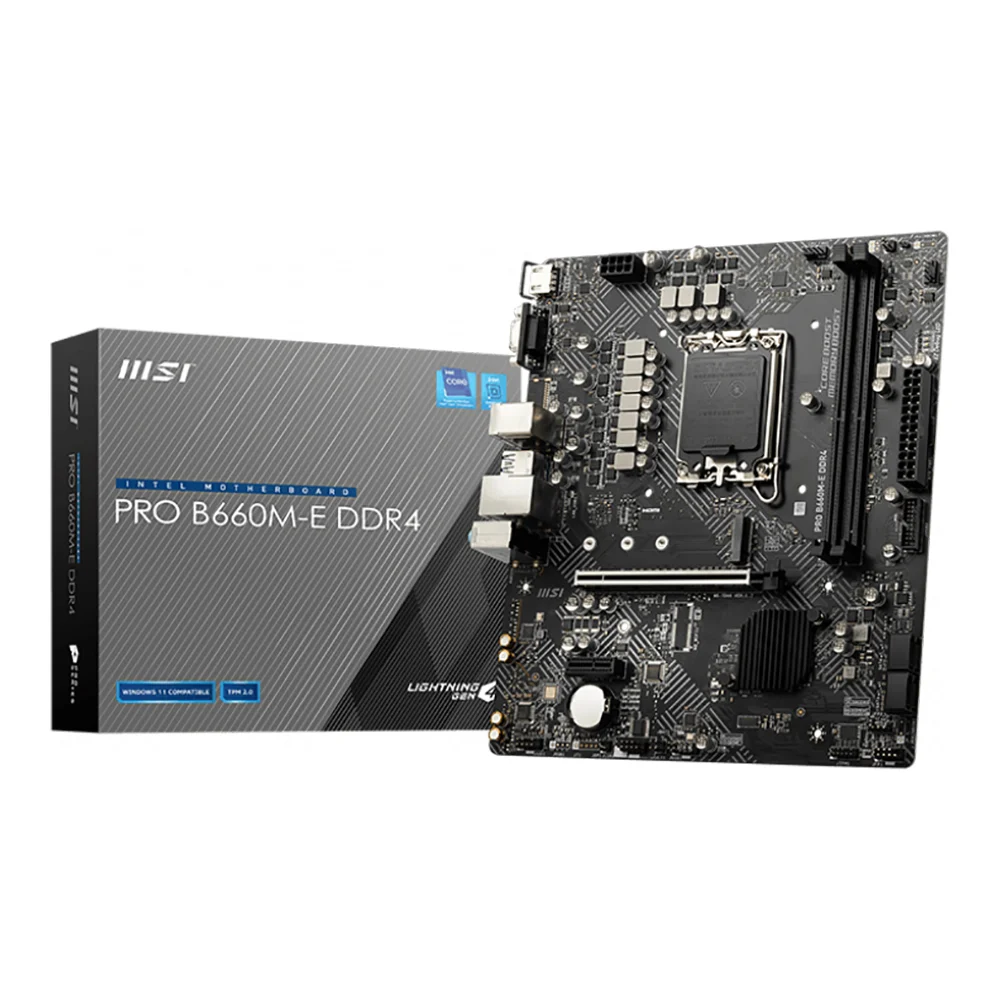

(1700) MSI PRO B660M-E DDR44
₭2.354.100
- Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
- Supports DDR4 Memory, up to 4600+(OC) MHz
- Core Boost : With premium layout and digital power design to support more cores and provide better performance
- Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
- Lightning Fast Experience: PCIe 4.0
- Audio Boost: Reward your ears with studio grade sound quality
- Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.
Out of stock
- BrandMSIModelPRO B660M-E DDR4CPU SupportSupports 12th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors
Processor socket LGA1700Socket1700ChipsetB660Memory Support2x DDR4 memory slots, support up to 64GB
Supports 1R 2133/ 2666/ 2933/ 3200 MHz (by JEDEC & POR)
Max overclocking frequency:
– 1DPC 1R Max speed up to 4600+ MHz
– 1DPC 2R Max speed up to 4000+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)Graphics1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz
1x VGA port, supports a maximum resolution of 2048×1536 50Hz, 2048×1280 60Hz, 1920×1200 60HzMulti Graphic SupportNoneAudioRealtek® ALC892/ ALC897 Codec
7.1-Channel High Definition AudioExpansion Slots1x PCIe x16 slot (From CPU)
– Supports up to PCIe 4.0 x16
1x PCIe x1 slot (From B660 chipset)
– Supports PCIe 3.0 x1Storage4x SATA 6Gb/s ports (From B660chipset)*
*SATA7 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.1x M.2 slot (Key M, from B660 chipset)**
Supports up to PCIe 3.0 x4
Supports up to SATA 6Gb/s
Supports 2242/ 2260/ 2280 storage devices
Support Intel® Optane™ Memory
Supports Intel® Smart Response Technology for Intel Core™ processors
**SATA7 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.RAID
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devicesUSBIntel® B660 Chipset
4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector)
6x USB 2.0 ports (4 Type-A ports on the back panel(hub-GL850G), 2 ports available through the internal USB 2.0 connector)Internal I/O Connectors1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
1x 4-pin CPU fan connector
1x 4-pin system fan connector
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1x TPM module connector
1x Clear CMOS jumperBack Panel Connectors1x HDMI
1x VGA
1x Keyboard / Mouse
2x USB 3.2 Gen 1 5Gbps Type-A
1x LAN port
3x Audio connector
4x USB 2.0LAN1x Intel® I219V 1Gbps LAN controllerWireless Data NetworkNoneForm FactorM-ATX Form Factor
9.3 in. x 8.0 in. (24.4 cm x 21.1 cm)H/W MonitoringN/ABIOSN/ASpecial FeaturesN/ASoftware FeaturesN/AOperating System SupportSupport for Windows® 11 64-bit, Windows® 10 64-bit
